ES208/ES208B

Product Type：

Dual 8 inch active line array

Product Features:

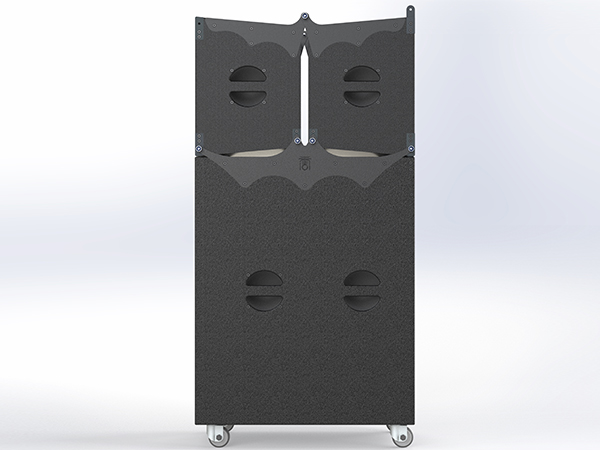

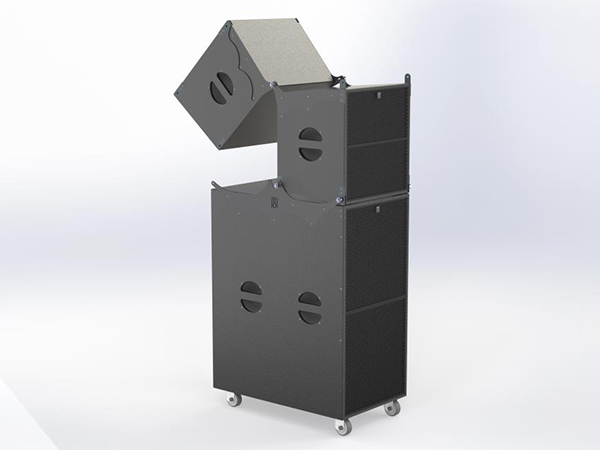

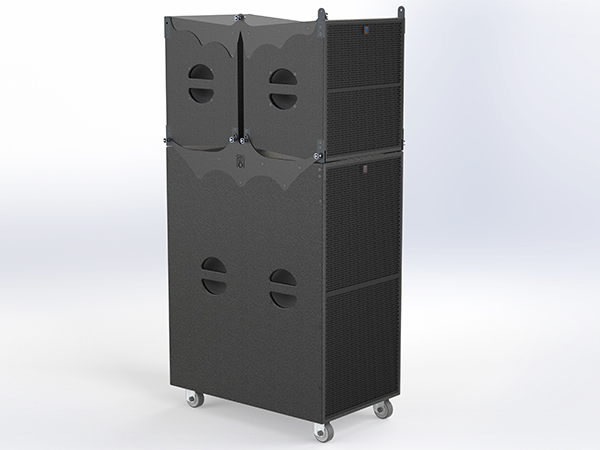

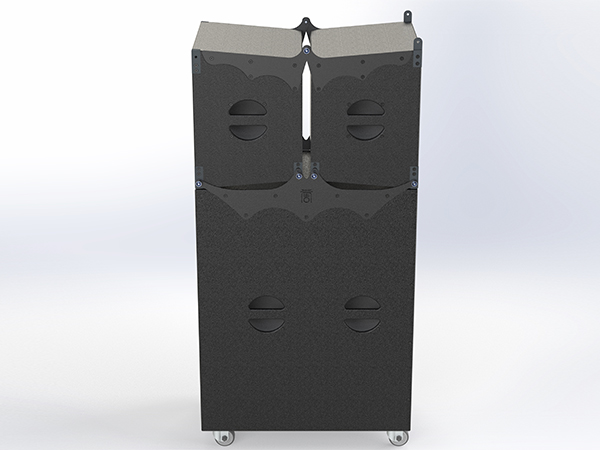

ES208 is a patented product. Its appearance design completely subverts the traditional line array design method. In order to achieve quick installation and storage, ES208 uses exquisite streamlined steel plate as the connection between the cabinets, hence a subwoofer and two tops  connected together as a combination. After the equipment arrives at the venue, only one of the full-range speakers needs to be turned over to complete the installation work. If a transporter with a tailgate is used, only one person can easily complete a performance.

Product Parameters:

Top (ES208)：

 Power Rating: 450W / 900W / 1800W (continuous/program/peak）

Nominal Impedance：8Ω

Frequency Range(-10db)：65Hz - 20KHz

Frequency Response(±3db)：80Hz - 18KHz

Max SPL：125dB SPL(continuous) / 131dB SPL(peak)

System Sensitivity: 98dB(1w@1m)

LF Driver：2×8"

HF Driver：4×1"

Coverage：110°×10°

Crossover Frequency: 2.2kHz

Finish：Birch multi-ply wood / Black textured painting

Installation：

Grill：Powder coated steel/ black / 1.5mm / acoustic foam

Connector： Speakon®NL-2 1/4“ combination×2

Dimension：480×498×378mm（W×H×D）

Gross Weight: 25Kg





Subwoofer(ES208B)：

 Power Rating：480W / 960W / 1920W（Continuous/Program/Peak）

Nominal Impedance：8Ω

Frequency Range(-10db)：25Hz - 500Hz

Frequency Response(±3db)：35Hz - 300Hz

Max SPL：125dB SPL(continuous)/ 131dB SPL(peak)

System Sensitivity：96dB(1w@1m)

LF Driver：2×15"

Finish：Birch multi-ply wood / black textured paint

Installation：

Grill：Powder coated steel / black / 1.5mm / acoustic foam

Connector： Speakon®NL-2 1/4“ combination×2

Dimension：480×960×788mm（W×H×D）

Gross Weight：75Kg







Built-in DSP amplifier：

Built-in 3 channels  digital amplifier / built-in DSP digital processor

Channels：3

Power rating：2×500W@8Ω+1×1000W@4Ω

Input Connector：Balance input 2×XLR

Voltage： 180-230VAC

DSP matrix：2×3 matrix

Output EQ：10-band parameter equalization

Crossover： Butterworth、Bessel、Linkwitz slope 6 - 48

Output delay：2×16ms

Output compressor：soft knee、start control level、compression、compression ratio、release time

Output limiter：Start Control Level-90dBu - 21dBu、Release time 1 - 2895ms

DSP Preset：20 Preset options

Control：USB

Minimum output impedance：each channel 4Ω

cooling: fan

Max input level：16dBu（4.9V）

S/N Ratio：94dB

Frequency Response：20Hz  - 20kHz  (±0.5dB)@1W，8Ω

THD+N：<0.1%@1W to full power

Sampling Rate：48K/24bit

Channel Isolation：<-70dB
