KT series power amplifier

Class H power amplifier

Model : Class H power amplifier
Brand : Dcenter
Price : ¥
Color : Black
BUY Download

详细信息

Product Type The KT series

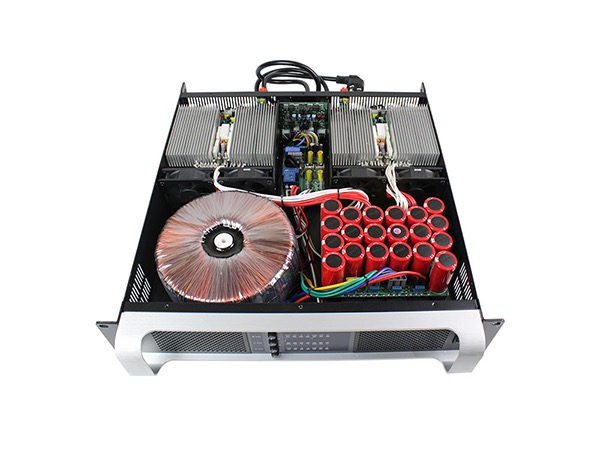

 The KT series is designed to meet the needs of users. It has a sturdy and elegant appearance, high-fidelity sound quality, powerful bass, wide midrange, and delicate treble. It adopts a large-area alloy tunnel-type heat dissipation system and two high-speed fans that increase the speed with the temperature to ensure the normal use of the power under low resistance load.


Product features :

Design scheme: CLASS H, four-channel design.

Mainly suitable for live performances, discos, nightclubs, bars, slow shake bars, conferences, theaters, etc.

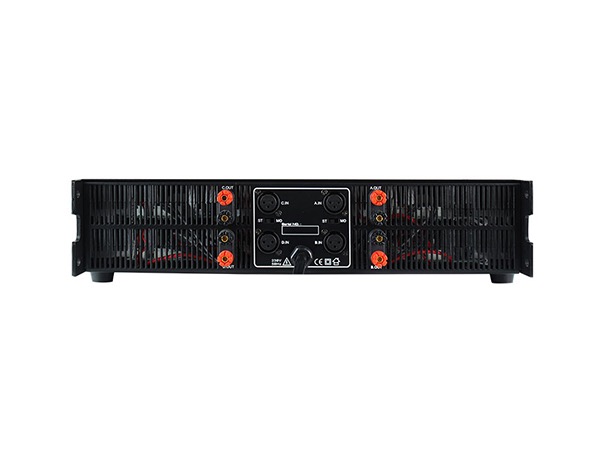

Signal: XLR three-core balanced input, XLR three-core balanced parallel output

It has a unique protection circuit design and protection functions: DC, overheating, overload and amplitude limiting, overvoltage and undervoltage, which effectively protect the equipment for long-term use.

The pull switch on the rear panel is used to select stereo mode, bridge mode, parallel mode, and three working modes.



Product parameters:


Model

KTF600

KTF800

KTF1000

KTF1300

4 ohm stereo output

4X890W

4X1100W

4X1500W

4X1820W

8 ohm stereo output

4X600W

4X800W

4X1000W

4X1300W

Frequency response range

20-20000Hz(±0.5dB)

Input sensitivity

0.775V

Slew rate

≥17V/µs

Damping Factor

≥600:1

Crosstalk

﹥70dB@1KHz

Signal to noise ratio

﹥105dB

Total harmonic distortion

<0.04%,1KHz

Intermodulation distortion

﹤0.2%8Ω,1KHz@1W

Size (W×H×D)

483×89×485mm

Net weight

18.5KG

19KG

20.5KG

22KG
