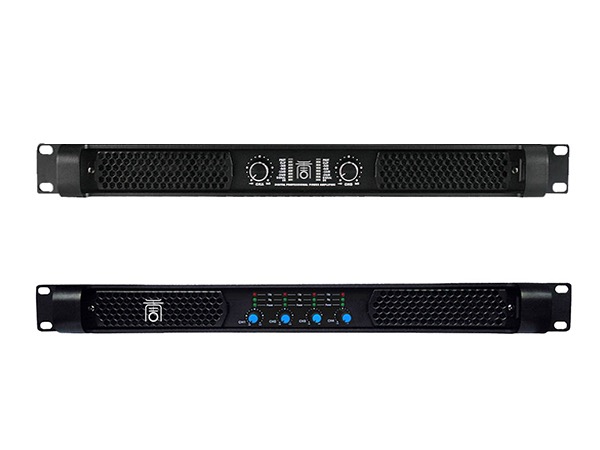

AT series

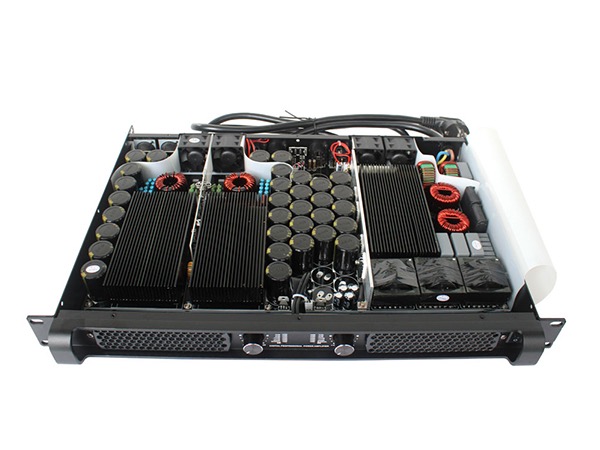

AT series is a milestone of Class D power amplifier, integrated design of power amplifier module and power module, advanced Class-D module, efficient SMPS module, extremely high efficiency, reliability and power density, 1U height standard chassis space can provide powerful power , It can be used for sound amplification in mobile performances, outdoor activities, bars, KTV, concert halls, sports arenas and so on.
Product Features:
Design scheme: CLASS D
Mainly used in conferences, multi-function halls, theaters, music bars and restaurants, background music, etc.
With PFC, it can work stably in the range of full voltage (90V-265V)
Full circuit protection: soft start, DC, infrasound, high frequency, overheating, short circuit, startup, shutdown, and mute
Has obtained CCC, CB, CE certification, and RoHS environmental certification

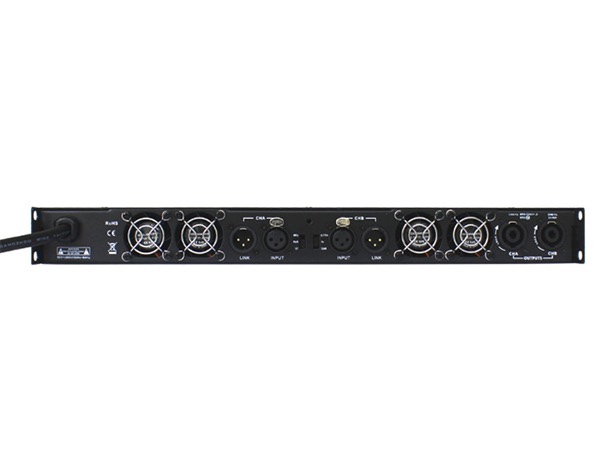

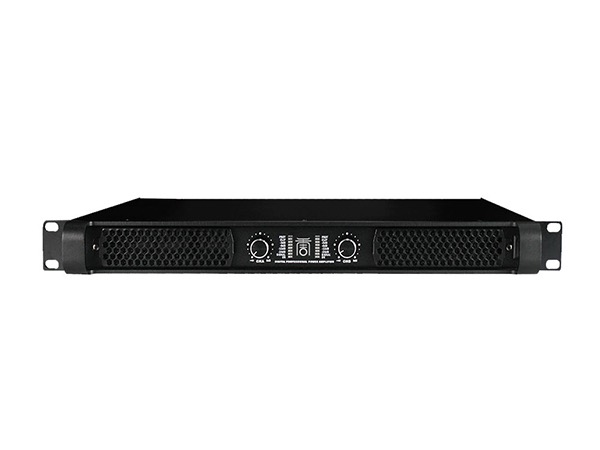

Product parameters(two-channel):
|
model |
ATT350 |
ATT500 |
ATT650 |
ATT800 |
ATT1100 |
ATT1400 |
ATT1700 |
ATT2100 |
ATT2400 |
ATT2800 |
|
stereo output 4 ohm |
2X580W |
2X800W |
2x1250W |
2x1300W |
2x1800W |
2x2300W |
2x2800W |
2x3400W |
2x3800W |
2x4500W |
|
stereo output 8ohms |
2X350W |
2X500W |
2X650W |
2X800W |
2X1100W |
2X1400W |
2X1700W |
2X2100W |
2X2400W |
2X2800W |
|
stereo output 2ohms |
2X1100W |
2X1100W |
2x1250W |
2x1500W |
2x2000W |
2x2600W |
2x3600W |
2x4000W |
2x5000W |
2x5500W |
|
bridged Output 8ohms |
1160W |
1600W |
2100W |
2600W |
3600W |
4600W |
5600W |
6800W |
7600W |
9000W |
|
Voltage gain |
40.8/38.6/32 |
|||||||||
|
Total harmonic distortion |
≤0.035% (@ 8Ω，1kHz，1/8 rated power) |
|||||||||
|
Intermodulation distortion IMD |
≤0.15% (@ 8Ω，1kHz，1/8 rated power) |
|||||||||
|
Signal to noise ratio |
>106dB A |
|||||||||
|
Crosstalk |
>40dB |
|||||||||
|
Frequency Range |
10Hz to 20k Hz,+/-1dB |
|||||||||
|
input resistance |
balance 20K/ non-balance 10K |
|||||||||
|
Damping Factor |
≥600 |
|||||||||
|
Slew rate |
≥20v/uS |
|||||||||
|
Input sensitivity |
0.775V,0dB |
|||||||||
|
Product size (WxHxD) |
483x44x230mm |
483x44x280mm |
||||||||
|
net weight |
5.2kg |
5.5kg |
5.8kg |
6kg |
6.5kg |
7kg |
7.5kg |
8kg |
8.5kg |
9kg |

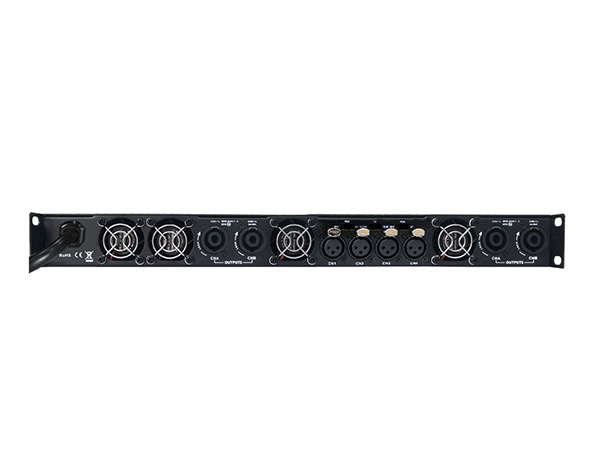

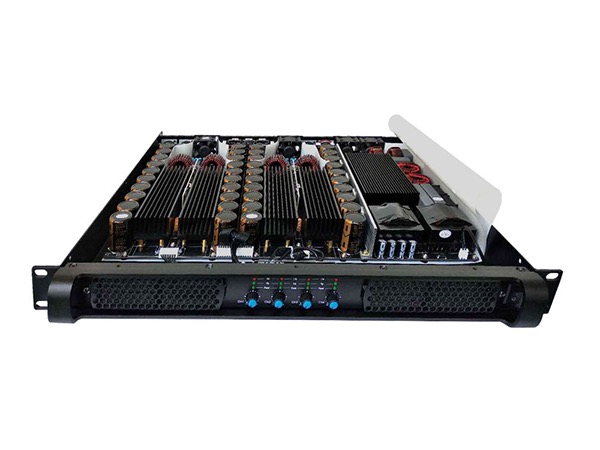

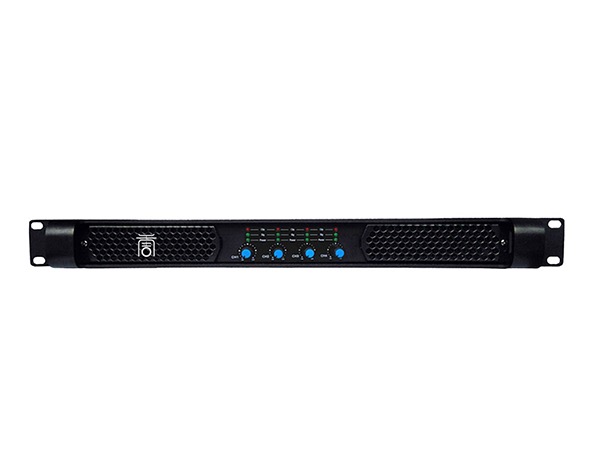

Pruduct parameters(four-channel):
|
model |
ATF500 |
ATF650 |
ATF800 |
ATF1000 |
ATF1400 |
ATF1800 |
|
stereo output 4 ohm |
4X800W |
4X1050W |
4x1300W |
4X1650W |
4X2300W |
2X2800W |
|
stereo output 8ohms |
4X500W |
4X650W |
4X800W |
4X1000W |
4X1500W |
4X1800W |
|
bridged Output 8ohms |
2X1600W |
2X2100W |
2X2600W |
2X3300W |
2X4600W |
2X5200W |
|
Voltage gain |
42.7/40.5/32 |
|||||
|
Total harmonic distortion |
≤0.035% (@ 8Ω，1kHz，1/8 rated power) |
|||||
|
Intermodulation distortion IMD |
≤0.15% (@ 8Ω，1kHz，1/8 rated power) |
|||||
|
Signal to noise ratio |
>106dB A |
|||||
|
Crosstalk |
>40dB |
|||||
|
Frequency Range |
10Hz to 20k Hz,+/-1dB |
|||||
|
input resistance |
balance 20K/ non-balance 10K |
|||||
|
Damping Factor |
≥600 |
|||||
|
Slew rate |
≥20v/uS |
|||||
|
Input sensitivity |
0.775V,0dB |
|||||
|
Product size (WxHxD) |
483x44x230mm |
483x44x381mm |
||||
|
net weight |
6.2kg |
6.3kg |
6.9kg |
7.1kg |
9.8kg |
10kg |
