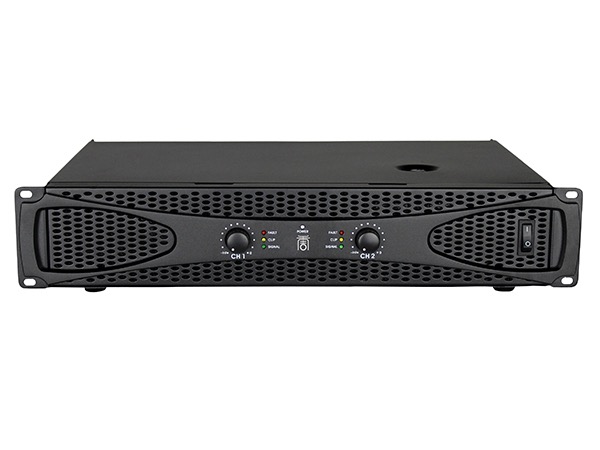

GT series
GT serier adopts highly efficient and stable Class-H circuit, and through efficient signal conversion function, it greatly reduces harmonic distortion, intermodulation distortion and transient intermodulation distortion, so that the sound quality is perfectly amplified, and the integrated modular regulator , Solid and compact structure and exquisite manufacturing technology, so that it can perform stable and outstanding whether in small meeting rooms, KTV or large gymnasiums or concerts.
Product Features:
Design scheme: CLASS H
Mainly used for KTV, conferences, small road shows, multi-function halls, etc.
Small size, low weight, high efficiency, high sound quality, full and magnetic sound.
It has a unique protection circuit design and protection functions: DC, overheating, overload and amplitude limiting, overvoltage and undervoltage, which effectively protect the equipment for long-term use.

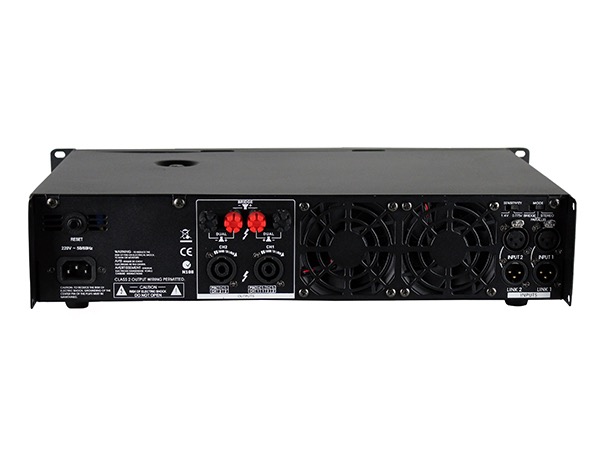

The pull switch on the rear panel is used to select stereo mode, bridge mode, parallel mode, and three working modes.
Product parameters：
|
Model |
GTT400 |
GTT600 |
GTT800 |
GTT1000 |
GTT1200 |
|
stereo output 4 ohm |
2X700W |
2X1000W |
2X1400W |
2X1800W |
2X2000W |
|
stereo output 8 ohm |
2x400W |
2X600W |
2X800W |
2X1000W |
2X1200W |
|
bridged output 8 ohm |
1100W |
1800W |
2300W |
2800W |
3000W |
|
Input sensitivity |
0.775V/1.4V |
||||
|
Frequency response |
20-20000Hz(±0.3dB) |
||||
|
Damping Factor |
﹥200:1 |
||||
|
Crosstalk |
>70dB@1KHz |
||||
|
Signal to noise ratio |
﹥100dB |
||||
|
Total harmonic distortion |
＜0.5%，1KHz |
||||
|
Intermodulation distortion |
﹤0.35%8Ω,1KHz1W |
||||
|
Size (W×H×D） |
483×88×360mm |
||||
|
Net weight |
12.7KG |
13.5KG |
14.5KG |
19.5KG |
20KG |
