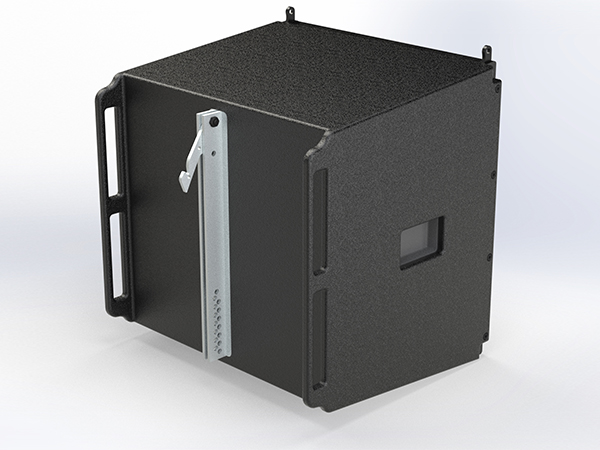

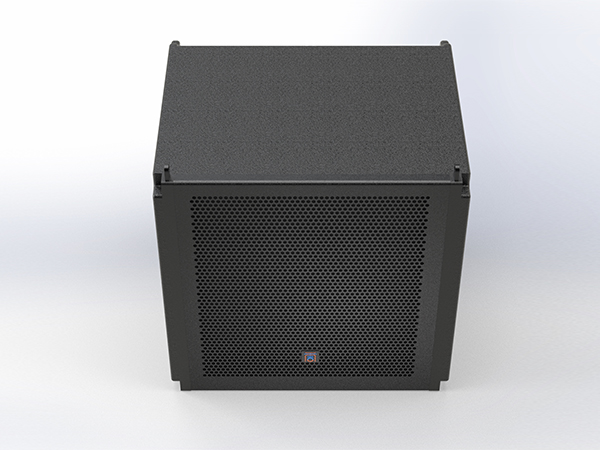

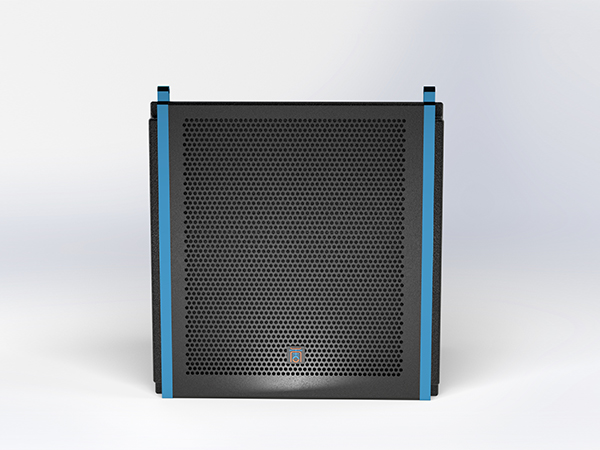

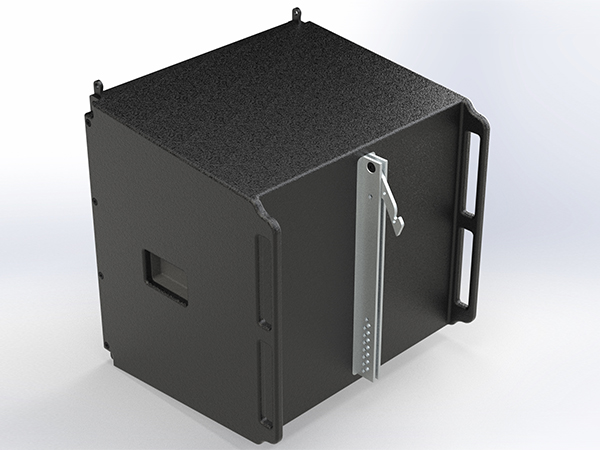

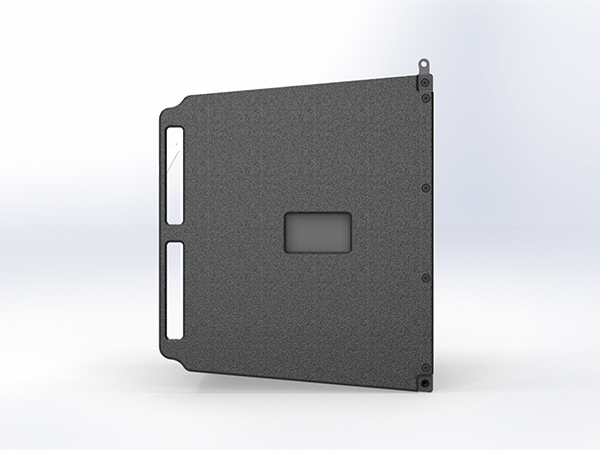

LA2815

Product Type:
Dual 8" line array speakers


Product Features:
LA2815 adopts a brand-new system processing scheme. After being processed by a high-bit-rate DSP processor, the sound is smoother and wider. The overall system has achieved a high degree of reduction and embodies more sound elements. New line array design, narrow body, can save horizontal space. The treble adopts 4 units with 25mm voice coil, which makes the upper limit of treble more delicate and soft. Two 8" woofers are installed side by side vertically, which not only achieves the dual 8" dynamic design, but also achieves the correct way of spreading the treble, avoiding mutual interference when multiple speakers are suspended. LA2815 has a streamlined structural design, beautiful appearance, convenient and flexible to use, and can be hoisted and stacked according to site conditions. It is suitable for use in theaters, multi-function halls, lecture halls and other occasions.

Product Parameters：
Power Rating：450W / 900W / 1800W （Continuous/Program/Peak）
Nominal Impedance：8Ω
Frequency Range(-10db)：55Hz - 20KHz
Frequency Response(±3db)：68Hz - 19KHz
Max SPL：127dB SPL(continuous) / 132dB SPL(peak)
System Sensitivity：99dB(1w@1m)
LF Driver：2×8"
HF Driver：4×1"
Coverage：90°×15°
Crossover：2.3kHz
Finish：Birch Multi-ply Wood / black textured paint
Rigging system：3 points rigging system
Grill：Powder coated steel / black / 1.5mm perforated/ acoustic foam
Input Connector：Speakon®NL-2 1/4“ combination×2
Dimension：480×499×428.5mm（W×H×D）
Gross Weight：25Kg
