S-108K

Product type:

Power sequencer

Product parameters:

6 square three-core Zhujiang brand cable;

Unique network cable port, external 86 bottom box switch, no need to switch on and off the cabinet frequently;

1 set of air switch on the panel;

8 channels output, each channel delay opening and closing time can be set freely (channel delay 0~999S);

LCD voltage dynamic display, date, time, channel display;

Each 30A brand-name relay output, customized pure copper standard universal interface socket, the maximum output of a single channel is 3KW, and the total output is 8KW;

Freely set over-voltage and under-voltage protection to ensure stable power output;

Timing switch machine, divided into two modes of cyclic and non-cyclic switch machine, can be freely set to turn on and off functions on a weekly basis;

Configure 232 central control port to support external central control equipment control;

It can realize remote centralized control, and each device has its own device code ID detection and setting;

Support multiple devices cascading, the cascading status can be automatically detected and set;

Fully automatic production and testing technology to ensure standardized production and product consistency;

Panel LOCK lock function to prevent human error operation, lightly touch to turn on, long press for 3 seconds to shut down (Note: do not long press to turn on, otherwise the machine will automatically lock, you must power off to unlock, then lightly touch to turn on);

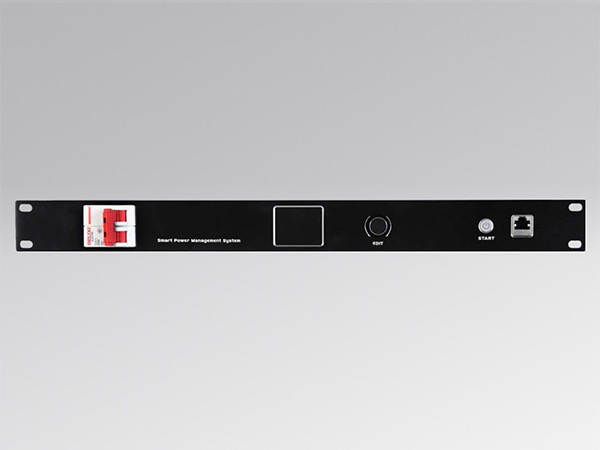

The design of high-end brushed aluminum alloy panel enhances the product grade.

Body size: 480x265x44.5mm
