Product type：

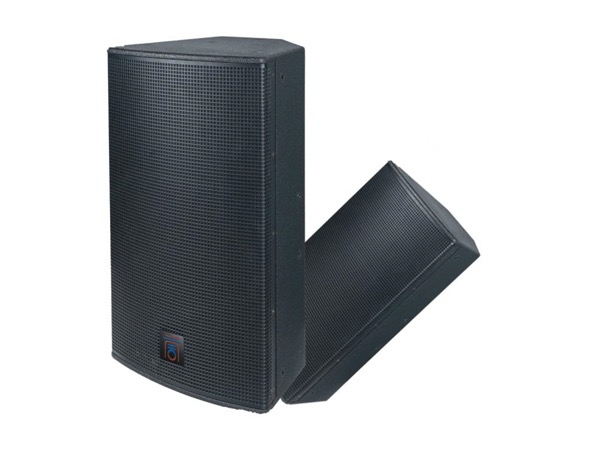

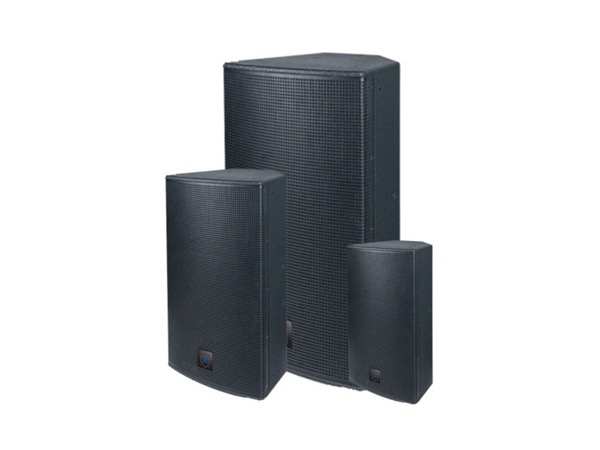

CK series full-range speakers
Product Features：
CK series speakers adopt high-end Italian 18SOUND speaker units, which are customized products for Qianzhou, mainly used in high-end performance products and high-end entertainment speakers. CK series loudspeakers have delicate and bright treble, sweet and full midrange, and full and powerful bass. Because of the layering and large dynamic range brought by high-quality units, CK series loudspeakers are used in music, vocals, or explosive electroacoustics. Both have excellent performance.
Product parameters:
|
Model/Function |
CK10 |
CK12 |
CK15 |
|
Woofer |
10″*1; 8Ω/350W/ sensitivity |
12″*1; 8Ω/400W/ sensitivity 96dB/ maximum sound pressure level 128dB |
15″*1; 8Ω/450W/ sensitivity 96dB/ maximum sound Pressure level 132dB |
|
Tweeter |
1.75″*1; 8Ω/80W/ sensitivity 103dB/ maximum sound pressure level 128dB |
2″*1; 8Ω/80W/ sensitivity 103dB/ maximum sound pressure level 128dB |
3″*1; 8Ω/120W/ sensitivity 103dB/ maximum sound Pressure level 129dB |
|
Rated power |
450W |
600W |
700W |
|
Peak power |
1800W |
2400W |
2800W |
|
Rated impedance |
8Ω |
8Ω |
8Ω |
|
Frequency response (-10bB) |
55Hz-20KHz |
40Hz-20KHz |
32Hz-20KHz |
|
Directivity (H*V) |
60*90 (rotatable) |
60*90 (rotatable) |
60*90 (rotatable) |
|
Box size (W*H*D) |
335*492*300mm |
390*585*350mm |
437*705*405mm |
|
Net weight (KG) |
13KG |
18KG |
23KG |
|
Surface treatment |
Water-based spot paint |
Water-based spot paint |
Water-based spot paint |
