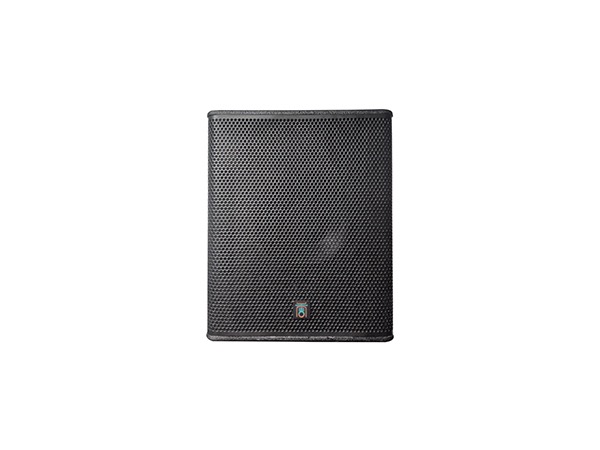

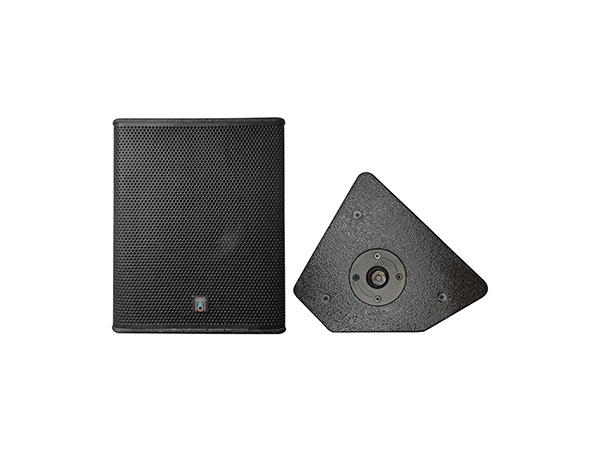

CX8

Product Type:

8" coaxial speaker

Product Features:

CX8 is a high-quality coaxial speaker with a trapezoidal appearance design that is exquisite and compact. The configuration of the high-power driver allows the compact CX8 to play a high sound pressure level. Because of its compactness and easy concealed installation, it is very suitable for applications such as theater stage lips, orchestra pits, and stage fills.

Product parameters:

Rated power: 200W / 400W / 800W (continuous/program/peak)

Rated impedance: 8Ω

Frequency range (-10db): 65Hz-20KHz

Frequency response (±3db): 75Hz-18KHz

Maximum sound pressure level: 121dB SPL continuous / 127dB SPL peak

System sensitivity: 98dB(1w@1m)

Bass driver: 1×8""

Tweeter driver: 1×1.3""

Radiation angle: 90°×90°

Crossover frequency: 2.2kHz

Cabinet appearance: birch plywood / black water-based paint

Suspension/installation: four M8 lifting points

Steel mesh: powder layer / black / 1.5mm perforated steel / black acoustic cloth inside

Input connector: Speakon®NL-2 1/4" combination×2

Box size: 295×295×235mm (W×H×D)

Net weight: 12Kg"
