Product Type:
15"" coaxial speaker
Product Features:

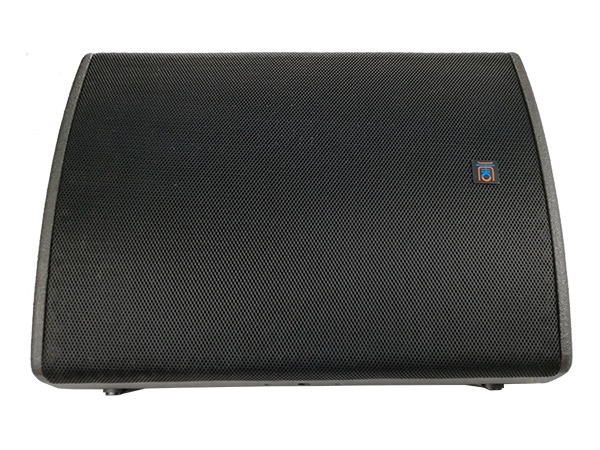

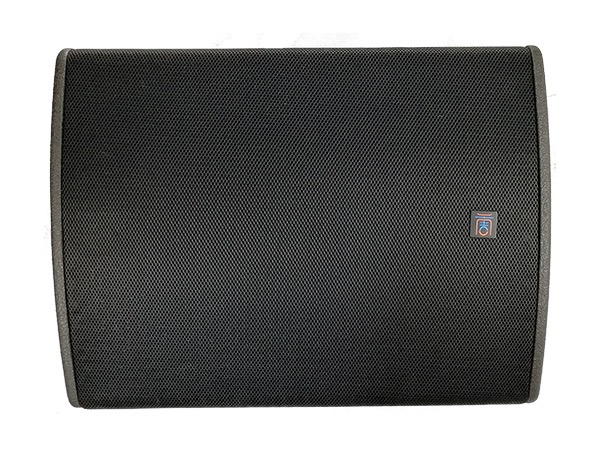

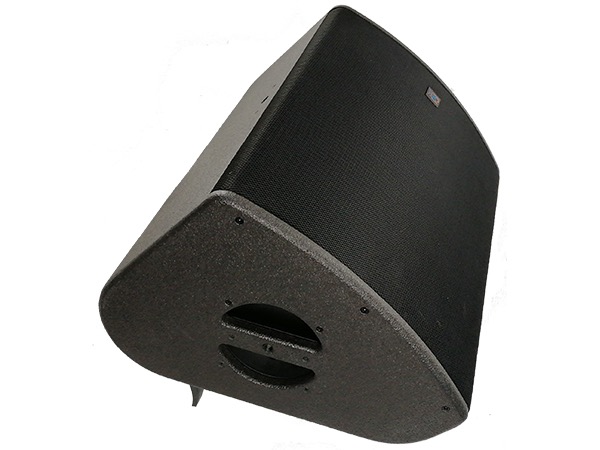

CNX15 is a high-quality coaxial loudspeaker with balanced sound performance, giving singers a comfortable listening effect. The coaxial diffusion method brings a better listening effect for singers performing on stage mobile performances, regardless of the song Whether facing the speaker or deviating from the speaker, the accompaniment effect can be heard clearly. CNX15 also has a very useful design, which can be set at different angles according to different placement positions. Two retractable and expandable angle controllers allow CNX15 to be used freely.
Product parameters:
Rated power: 480W / 960W / 1920W (continuous/program/peak)
Rated impedance: 8Ω
Frequency range (-10db): 48Hz-20KHz
Frequency response (±3db): 58Hz-18KHz
Maximum sound pressure level: 123dB SPL continuous / 129dB SPL peak
System sensitivity: 96dB(1w@1m)
Bass driver: 1×12""
Tweeter driver: 1×3""
Radiation angle: 90°× 90°
Crossover frequency: 2.2kHz
Box appearance: birch plywood / high-grade dark brown water-based sand paint
Suspension/installation: eight M8 lifting points, one support base
Steel mesh: powder layer / black / 1.5mm perforated steel / black acoustic cloth inside
Input connector: Speakon®NL-2 1/4" combination×2
Box size: 580×341×500mm (W×H×D)
Net weight: 22Kg
