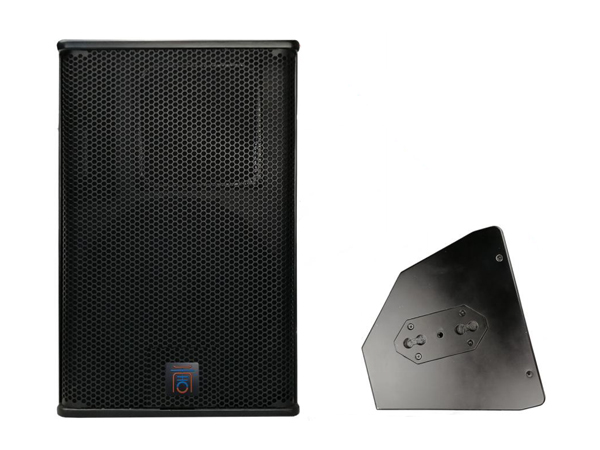

PM15P

Product Type:
Single 15" active full-range speaker

Product Features:

PM15P is a multi-purpose active loudspeaker with a multi-angle design, which makes it suitable for many occasions. It can be used as main sound reinforcement, monitoring, and supplementary sound.

Product Parameters：

Power Rating：500W / 1000W / 2000W （continuous/program/peak）

Nominal Impedance：8Ω

Frequency Range(-10db)：48Hz - 20KHz

Frequency Response(±3db)：58Hz - 18KHz

Max SPL：121dB SPL(continuous) / 127dB SPL(peak)

System Sensitivity：95dB(1w@1m)

LF Driver：1×15" (65mm voice coil 170 magnet) / 8Ω

HF Driver：1×1.75"(44mm voice coil) / 8Ω

Coverage：90°×60°

Crossover：2.2kHz

Finish：birch multi-ply wood / black textured paint

Installation：8 *M8

Grill：Powder coated paint / black / 1.5mm perforated / acoustic foam

 Amplifier module:

Stereo output power 8Ω: 750W+250W
Distortion: <0.2%
Signal to noise ratio: ﹥112dBA
Frequency response range: 10Hz to 20k Hz, +/-1dB
Input impedance: balanced 20K
Damping coefficient: >300
Output category: Class D
Input sensitivity: 0.775V
Protection function: short circuit protection, DC protection, overheating protection, overload protection and pressure limit
Control button: ON/OFF at the beginning of the power
Volume adjustment
Program switching (two program parameters are preset, which can be switched according to different venue conditions)
LED indicator: there is overload protection CLIP/-10dB/signal SIGNAL/STATUS indicator on the panel
Box size: 390×585×350mm (W×H×D)
Net weight: 23Kg
