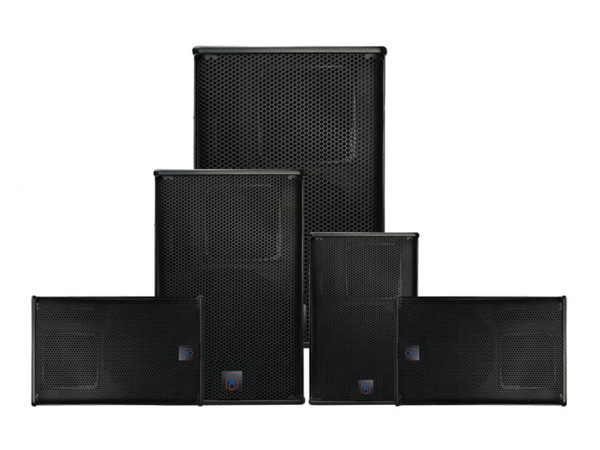

PM series is a multi-purpose loudspeaker with a multi-angle design, making it suitable for multiple occasions. It can be used as main sound reinforcement, monitoring, and supplementary sound.
Product Parameters:
|
Model |
PM8 |
PM10 |
PM12 |
PM15 |
|
LF DRIVER |
8″*1；8Ω/150W/ Sensitivity//99dB/Max SPL 127dB |
10″*1；8Ω/225W/ Sensitivity/97dB/Max SPL/128dB |
12″*1；8Ω/350W/ Sensitivity/96dB/Max SPL/128dB |
15″*1；8Ω/450W/ Sensitivity/96dB/Max SPL/129dB |
|
HF DRIVER |
1.75″*1；8Ω/40W/ Sensitivity/107dB/Max SPL/129dB |
1.75″*1；8Ω/80W/ Sensitivity/103dB/ Max SPL/128dB |
2″*1；8Ω/80W/ Sensitivity/103dB/Max SPL/128dB |
3″*1；8Ω/120W/ Sensitivity/103dB/Max SPL/129dB |
|
Power rating |
200W |
300W |
450W |
600W |
|
Peak power |
800W |
1200W |
1800W |
2400W |
|
Nominal Impedance |
8Ω |
8Ω |
8Ω |
8Ω |
|
Frequency Response（-10bB） |
75.5Hz-20KHz |
55Hz-20KHz |
35Hz-20KHz |
32Hz-20KHz |
|
Coverage（H*V） |
60*90（rotatable） |
60*90（rotatable） |
60*90（rotatable） |
60*90（rotatable） |
|
Dimension（W*H*D） |
285*435*260mm |
335*492*300mm |
390*585*350mm |
437*705*405mm |
|
N.W（KG） |
8KG |
13KG |
18KG |
23KG |
|
Finish |
textured black paint |
textured black paint |
textured black paint |
textured black paint |
